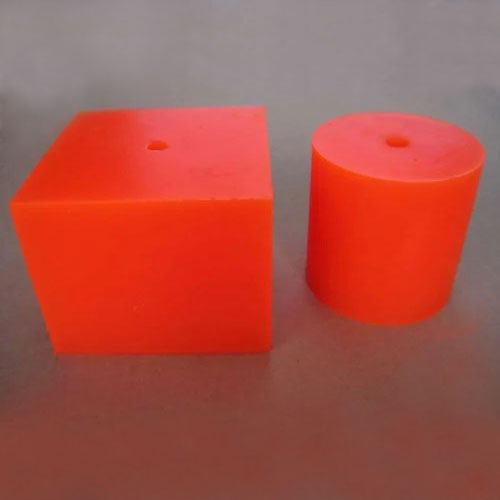

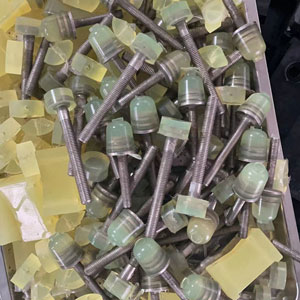

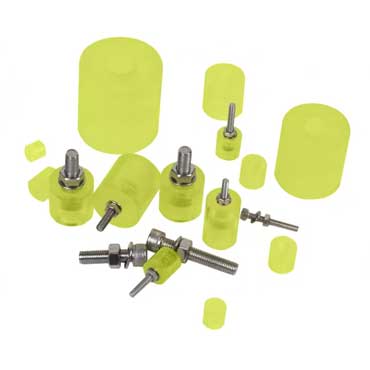

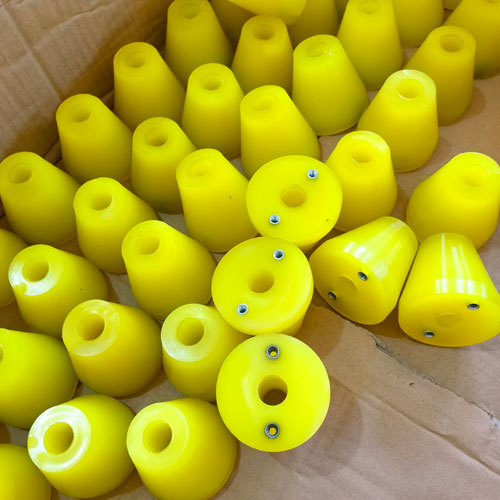

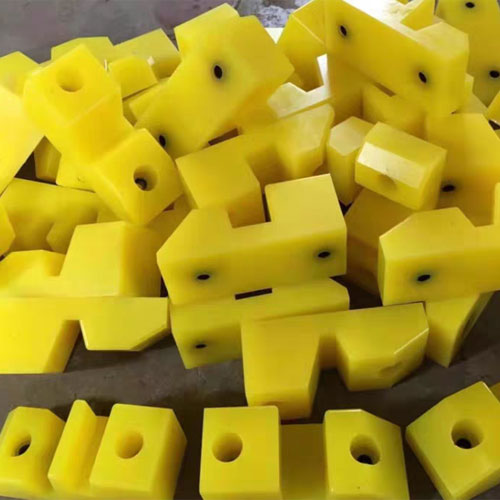

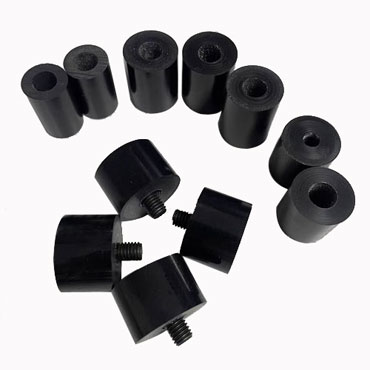

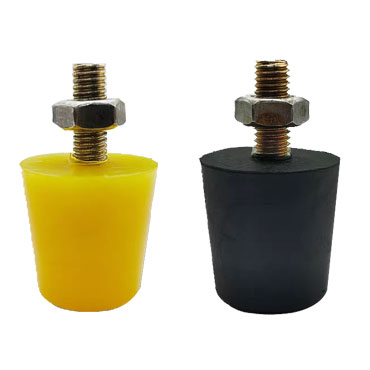

Urethane Bumper Stops
Urethane Bumper Stops are cushioning stops made of Polyurethane. Their main function is to cushion and dampen vibrations in all kinds of equipment, machinery or transportation. At the same time, it can also be used as a positioning and limiting device to determine the exact position of the components, to prevent the components from excessive movement or shaking caused by damage or affect the normal operation of the equipment.
Polyurethane Bump Stops Manufacturer
Advantage of Polyurethane Bump Stops
- Excellent cushioning performance
- Reduce the impact and noise
- Customizable shapes and Sizes
- Easy Installation and Maintenance
Application of Urethane Stopper

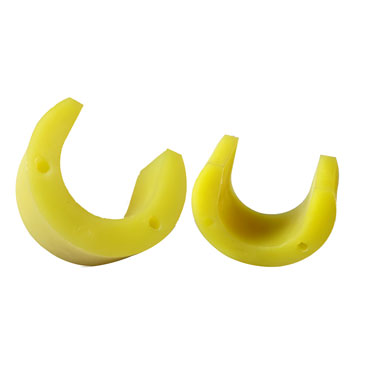

- Industrial and mechanical equipment- such as machine tools, injection molding machines, automated production lines.
- Automobile industry- like automobile chassis suspension system.

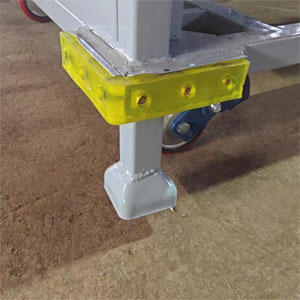

- Logistics and warehousing industry- installed in the corners of the shelves, forklift forks, the edge of the pallet and other positions, to prevent the goods from collision with the shelves, forklifts and other equipment in the process of handling, storage and damage to the goods, reduce logistics costs.
- Rail transportation industry- used in trains, subways and other vehicles, such as carriages, bogies and other parts of the platform protection facilities, highway and bridge construction, play a role in buffering shock absorption and limit.

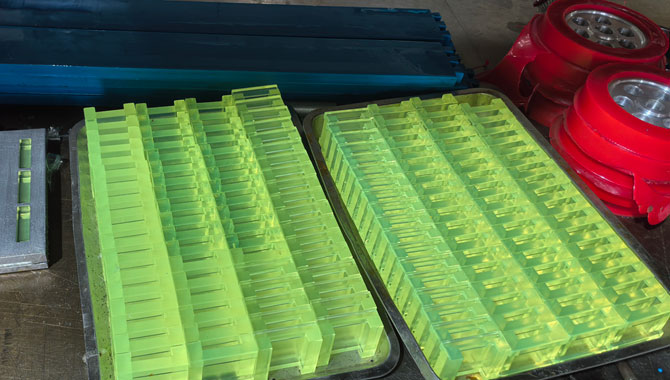

Custom Urethane Bumper Stops
- Product Specifications

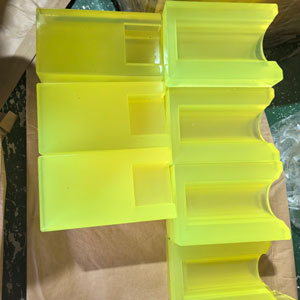

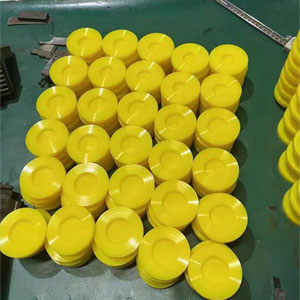

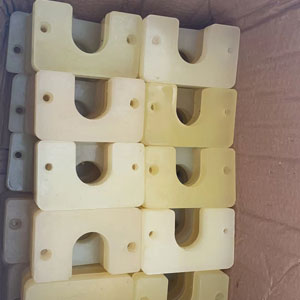

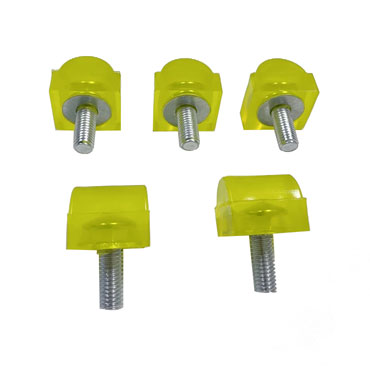

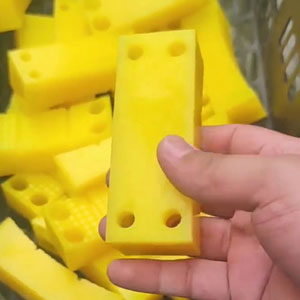

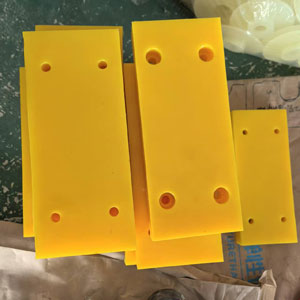

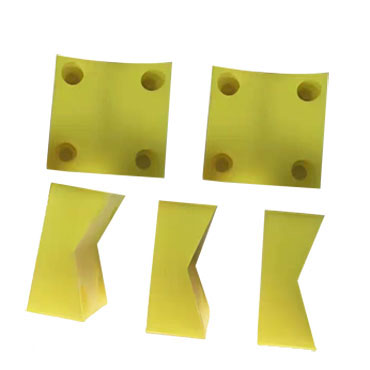

- Gallery
High hardness polyurethane bump stopper is high strength and rigidity, it can withstand large impacts, and is suitable for occasions requiring strong cushioning, such as large industrial equipment, heavy vehicles, and so on.
Medium hardness polyurethane bump stop is combining a certain degree of elasticity and strength, not only can provide a better cushioning effect, but also has a certain degree of support, the scope of application is more extensive, covering a variety of industrial and civil fields.
Low-hardness polyurethane bump stop is soft texture, good elasticity, mainly used for the cushioning comfort requirements of higher, less impact scenarios, such as automotive interior parts of the cushioning, some of the precision instruments and equipment protection.
Polyester polyol/TDI series prepolymer
| Model | D3136 | D3145 | D3160 |
| NCO content / % | 3.6±0.1 | 4.5±0.2 | 6.0±0.2 |
| State of matter At 20℃ | White waxy solid | White waxy solid | White waxy solid |
| MOCA 100g prepolymer dosage /g | 10.5 | 13.2 | 17.2 |
| Viscosity(85℃)/ mpa * s | 1800 | 1200 | 900 |
| Mixing Temperature /℃(prepolymer/MOCA) | 85/120 | 80/120 | 75/120 |
| Gel time /min | 9 | 7.5 | 5 |
| Post vulcanization time (100℃)/h | 10 | 10 | 10 |
| Hardness ( shore A) | 85±1 | 91±1 | 96A±1 (54D) |
| 100% constant tensile stress /MPa | 4.2 | 6.7 | 11.5 |
| 300% constant tensile stress /MPa | 8.3 | 12.5 | 21.3 |
| Tensile strength /MPa | 48 | 52 | 55 |
| Elongation at break / % | 670 | 610 | 530 |
| Tear strength (right angle) /(KN/m) | 75 | 95 | 124 |
| Tear strength (pants type) /(KN/m) | 34 | 42 | 49 |
| Rebound /% | 39 | 32 | 33 |
| Density (25℃)/(g/cm) | 1.26 | 1.27 | 1.29 |
| wearing out by friction mm³ | 40 | 48 | 57 |
Polyether polyols PTMG series prepolymer
| Model | D2135 | D2142 | D3160 |
| NCO content / % | 35±0.1 | 4.2±0.2 | 6.2±0.2 |
| State of matter At 20℃ | White waxy solid | White waxy solid | White waxy solid |
| MOCA 100g prepolymer dosage /g | 10 | 12.1 | 18 |
| Viscosity(85℃)/ mpa * s | 1200 | 750 | 480 |
| Mixing Temperature /℃(prepolymer/MOCA) | 85/120 | 85/120 | 80/120 |
| Gel time /min | 11 | 10 | 6 |
| Post vulcanization time (100℃)/h | 10 | 10 | 10 |
| Hardness ( shore A) | 85±2 | 90±1 | 95A±1 (49D±2) |
| 100% constant tensile stress /MPa | 5.4 | 7.5 | 12.8 |
| 300% constant tensile stress /MPa | 9.6 | 14.1 | 36.3 |
| Tensile strength /MPa | 27 | 33 | 48 |
| Elongation at break / % | 550 | 500 | 350 |
| Tear strength (right angle) /(KN/m) | 65 | 78 | 95 |
| Tear strength (pants type) /(KN/m) | 21 | 28 | 33 |
| Rebound /% | 61 | 54 | 47 |
| Density (25℃)/(g/cm) | 1.07 | 1.09 | 1.13 |
MDI series prepolymer
| Model | D3560M |
| NCO content / % | 6.0 |
| Viscosity(80℃)/ mpa * s | 1780 |
| D3560M : D3575-C | 100:6.1 |
| Gel time /min | 8-11 |
| Post vulcanization time (100℃)/h | 48 |
| Hardness ( shore A) | 83±3 |
| Tensile strength /MPa | 46 |
| Elongation at break / % | 580 |
| Tear strength (right angle) /(KN/m) | 82 |
| Rebound /% | 38 |
| Density (25℃)/(g/cm) | 1.2 |

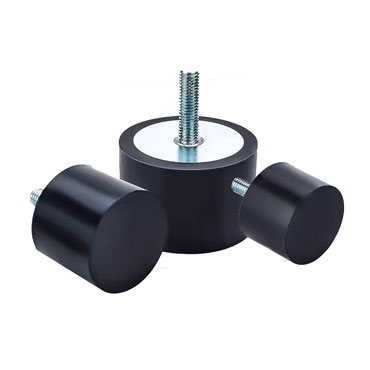

Related Products
Bump Stop Polyurethane Supplier
Are you looking for a supplier of polyurethane bump stops? We can customize polyurethane bump stops to meet your specific size, shape, and performance requirements. Whether you are looking for polyurethane bump stops for your existing production equipment or to replace worn out bump stops, our polyurethane molding solutions ensure a precise fit to meet your diverse needs.
Absolutely. We specialize in custom urethane products. Simply provide us with the details of your automated production line equipment, dimensional requirements, and working environment, and our team of professional engineers will design and manufacture Urethane Bumper Stops to meet your requirements, providing you with precise protection for your equipment.
The service life of Urethane Bumper Stops is influenced by a number of factors, such as frequency of use, weight of the goods, impact of handling equipment, etc. In a normal logistics environment, Urethane Bumper Stops will last for a long time. In normal logistics and warehousing environments, our products can be used for 2 - 5 years. However, if the working environment is more severe, we also have more durable models available to extend the service life.
Urethane Bumper Stops have excellent weather resistance. They are resistant to harsh weather conditions such as UV rays, rain, high and low temperatures, and remain stable over time, providing long-lasting cushioning protection for bridge facilities.
Compared with other materials, our Urethane Bumper Stops have the advantages of high elasticity, high abrasion resistance, good oil resistance and anti-aging. These characteristics make the product more effective in cushioning and vibration damping, which can effectively extend the service life of the equipment, reduce maintenance costs, and adapt to a variety of complex working environments.
Yes. We can provide customized Urethane Stopper according to the specific specifications and usage requirements of forklift trucks, loaders and other construction machinery equipment to ensure a perfect fit and effective cushioning and limiting effect.
